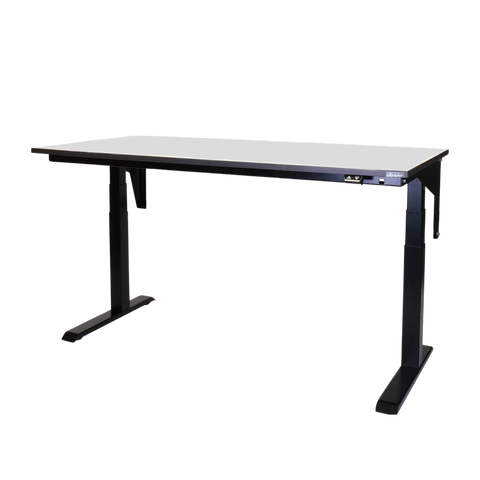

Flex 150 basic table

Motorized work table in a simple but effective design, suitable for light assembly and packaging. The height is adjusted quickly and easily with table control. The stand is made of black painted sheet metal RAL 9005, the construction is telescopically adjustable between length 1100 - 1800 mm. Suitable options of table top are 1200, 1600 or 2000 mm with 800 mm depth. The table is supplied as standard with a 24 mm thick table top laminate.

Assembles quickly and easily without special tools. The foot frame is equipped with adjustable feet.

Max load 190kg, spread load, Recommended load 150kg
Lifting speed unloaded 29mm/sec
Adjustable height 600-1150 mm
Connection 230V/50Hz
Built-in up/down collision protection
Stand color black RAL 9005
Package size 1190x380x205 mm
Weight 34 kg

NOTE: For extension , the table must be supplemented with extension unit. Fixed width will then be 1130, 1530 or 1830 mm for the stand.

TIP: The stand provides complete free floor space under the table as no intermediate stay is required between the legs.

Product	Depth	Length	Minimum height	Maximum height	Maximum load
243820008 table BASIC FLEX 150 LAM	800MM	1600MM	600MM	1150MM	190KG
243820109 table BASIC FLEX 150 SVART 800	800MM	1100MM	600MM	1150MM	190KG
243820206 table BASIC FLEX 150 L 1200X800	800MM	1200MM	600MM	1150MM	150KG
243820214 table BASIC FLEX 150 L 1600X800	800MM	1600MM	600MM	1150MM	150KG
243820222 table BASIC FLEX 150 L 2000X800	800MM	2000MM	600MM	1150MM	150KG
243821006 CONTROLLER FOR STAND BASIC 150
243821105 TABLE CONTROL FOR STAND 150
243821204 MOTOR CABLE FOR BASIC 100 150
243821808 extension frame SV 1120X120X40MM		1120MM
243821907 SUPERSTRUCTURE FRAME EN 1520X120X40MM		1520MM
243822004 extension frame SV 1720X120X40MM		1720MM
