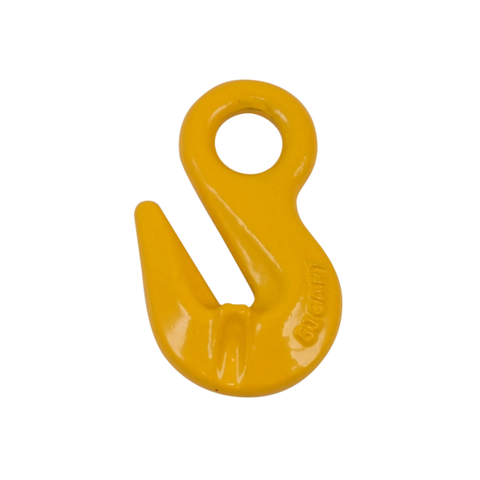

shortening hook Gigant

shortening hook of quenched and tempered steel. Must not be heat treated. Marked with the appropriate chain dimension. Test load: Min. 2.5 x max load and safety factor: 4:1. Coated with protective lacquer, yellow. Class 8.

Product	Maximum load	Chain dimension	Dimension D	Dimension E	Dimensions L	Dimensions M	Dimensions Q	Dimension Ø
243870904 shortening hook KL8 6MM 1,12T	1,12TON	6MM	8MM	8MM	73MM	45.5MM	14.5MM	14.5 mm
243871001 shortening hook KL8 7/8MM 2,0T	2TON	7.8MM	9.5MM	11MM	93MM	53MM	17.5MM	17.5 mm
243871100 shortening hook KL8 10MM 3,15T	3,15TON	10MM	13MM	13MM	122MM	71MM	20.5MM	20.5 mm
243871209 shortening hook KL8 13MM 5,3T	5,3TON	13MM	15.5MM	16.5MM	158MM	96MM	26MM	26MM
243871308 shortening hook KL8 16MM 8,0T	8TON	16MM	19MM	19MM	169MM	113MM	30.5MM	30.5 mm
