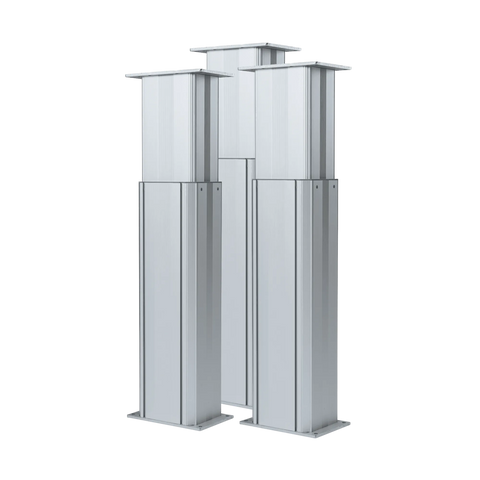

Lifting column LP 192 Electric drive. Very stable, quiet and maintenance-free lifting column, designed to regulate the working position of table, fixtures, workstations, etc. The telescope is made of natural anodized aluminum and thus fully recyclable. LP192 has very good lifting power, is torsionally stiff and is torque resistant. The large sliding bearings of the lifting column provide maximum stability. The outer telescopic tube is equipped with double nut slots on both long sides, intended for the attachment of equipment and accessories. The columns must be supplemented with actuators and accessories include a floor foot, foot frame and control unit bracket, see Accessories for electric columns. A wide range of standard models is available, and can also be customized according to requirements.
Technical data:
- Supplied with control unit.
- Maximum bending moment: 1000 Nm static at full stroke, 750 Nm dynamic.
- Intermittent: 15% but maximum 2 min continuous per 20 min.
- More than 10,000 operating cycles.
- Tolerance ± 4 mm in height.
- NOTE:! Must be mounted with the inner tube up.
- Cable outlet on inner tube, long side.
- Connection 8-pin MOLEX plug, cable length 1.8 m.
- Drive voltage control unit 230V.
