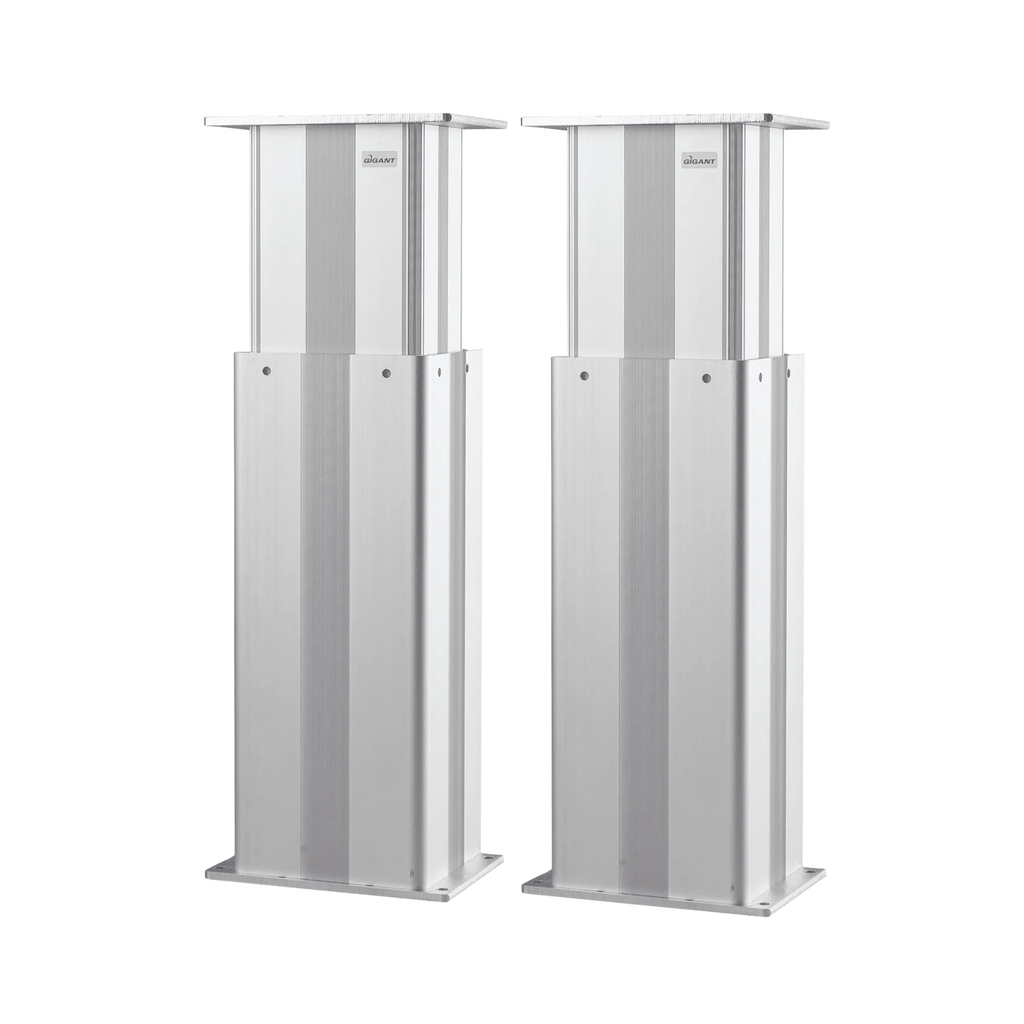

Lifting column LP 200 electric drive. Powerful model that is very suitable where high demands are made. Designed to regulate the working position in table, fixtures, workstations etc. The telescope is made of natural anodized aluminum and thus fully recyclable. LP 200 has very good lifting power, torsional rigidity and can withstand high bending moments. The large sliding bearings of the lifting column provide maximum stability. The outer telescopic tube is equipped with double nut slots on one long side, intended for the attachment of equipment and accessories. The LP 200 column lift system is supplied complete with hand control, control unit and power supply, ready for operation. A wide range of standard models is available and can also be customized according to requirements.
Technical data:
- Maximum bending moment: 1200 Nm static at full stroke, 850 Nm dynamic.
- Intermittent: 20% at maximum load .
- More than 10,000 operating cycles.
- Tolerance ± 2 mm in height.
- Can be mounted upside down on request.
- Cable outlet on inner tube, long side.
- Connection to screw terminal, cable length 4.5 m.
- Drive voltage control unit 230V.
