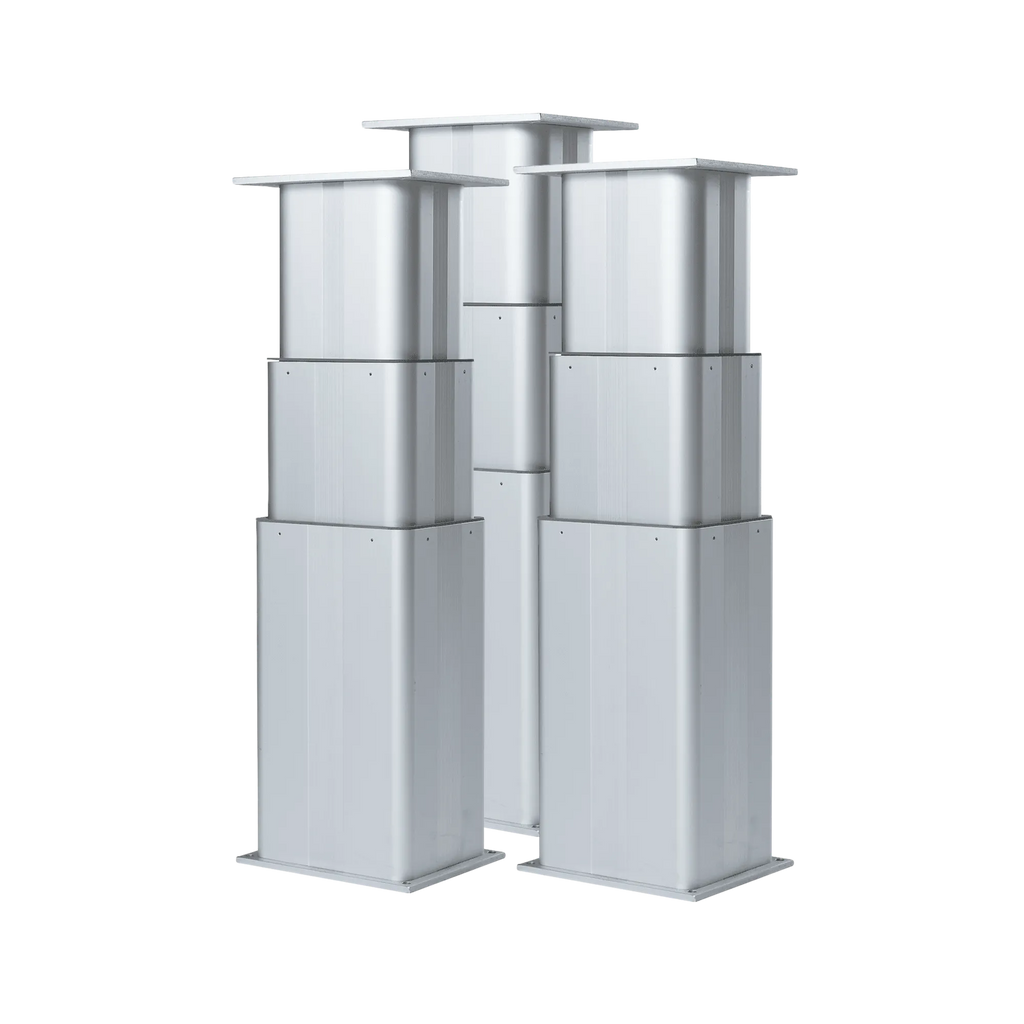

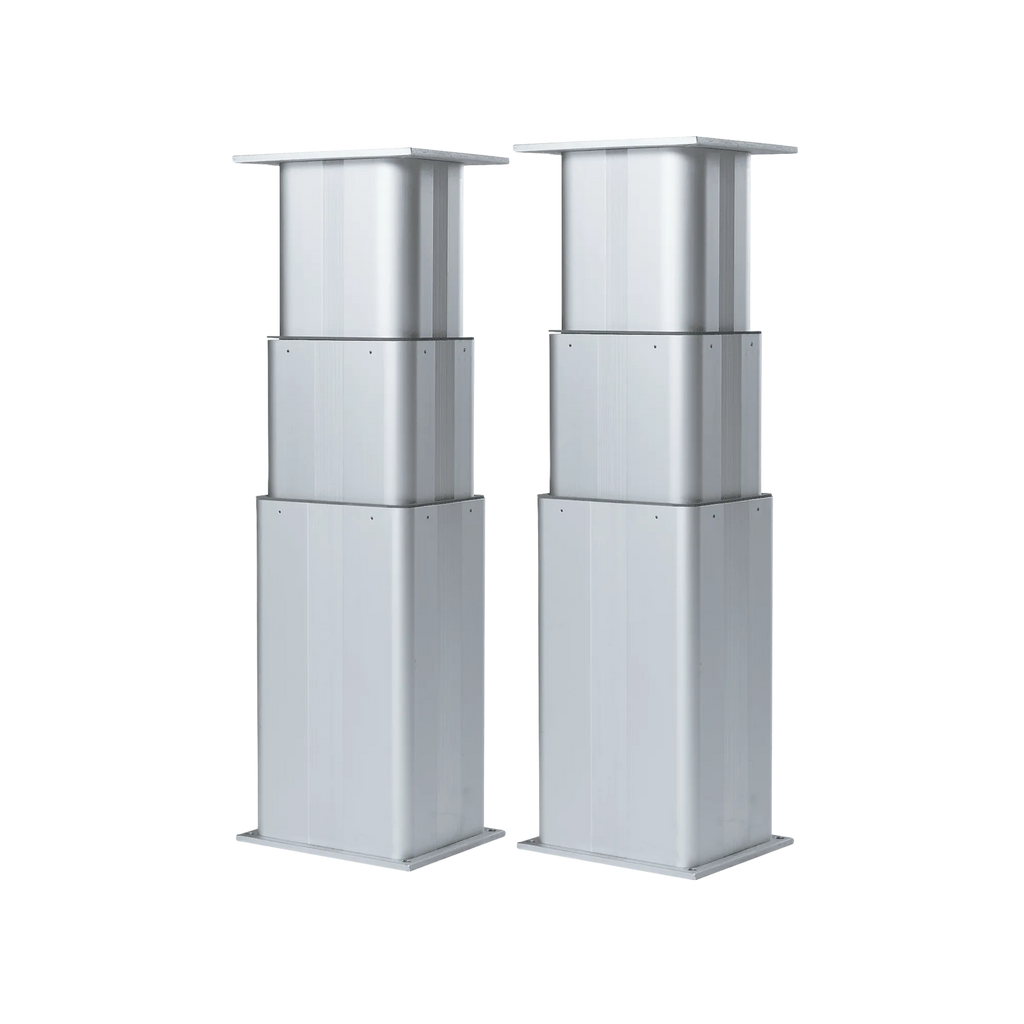

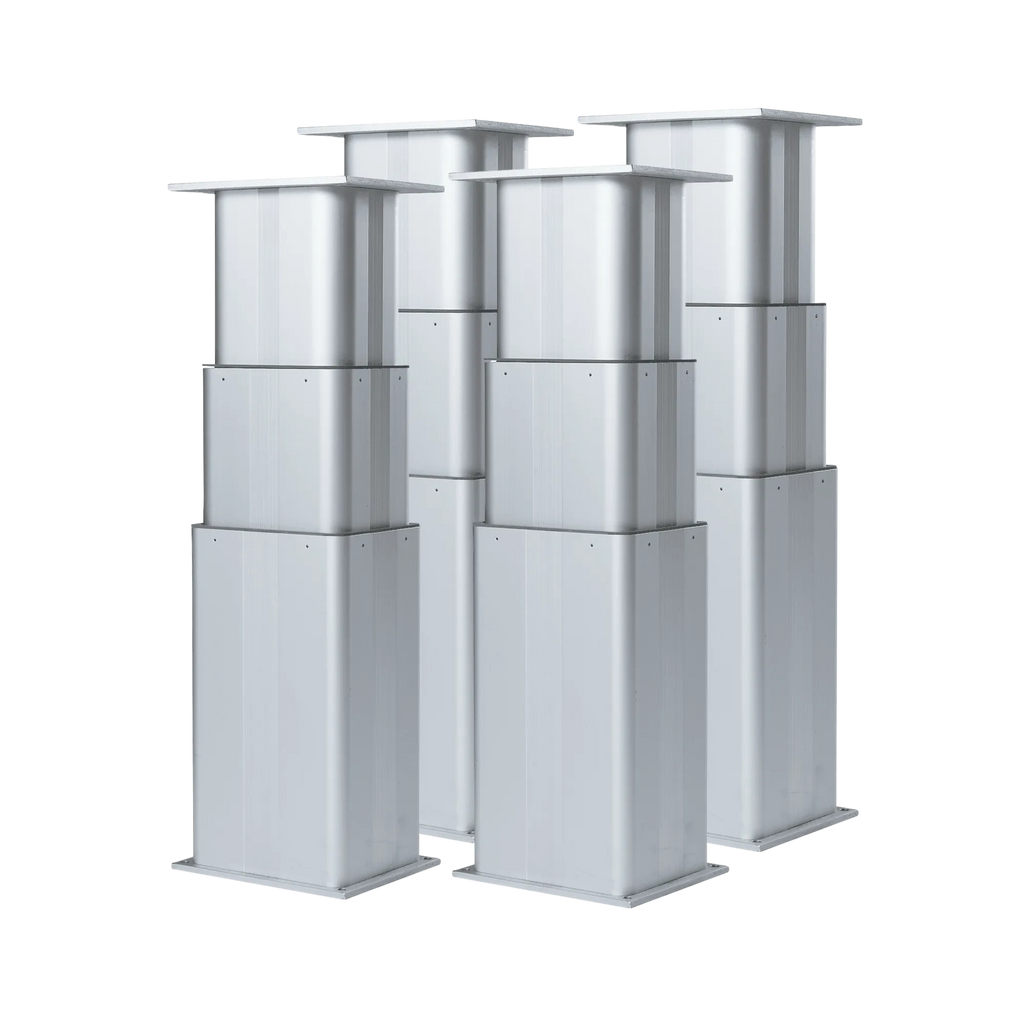

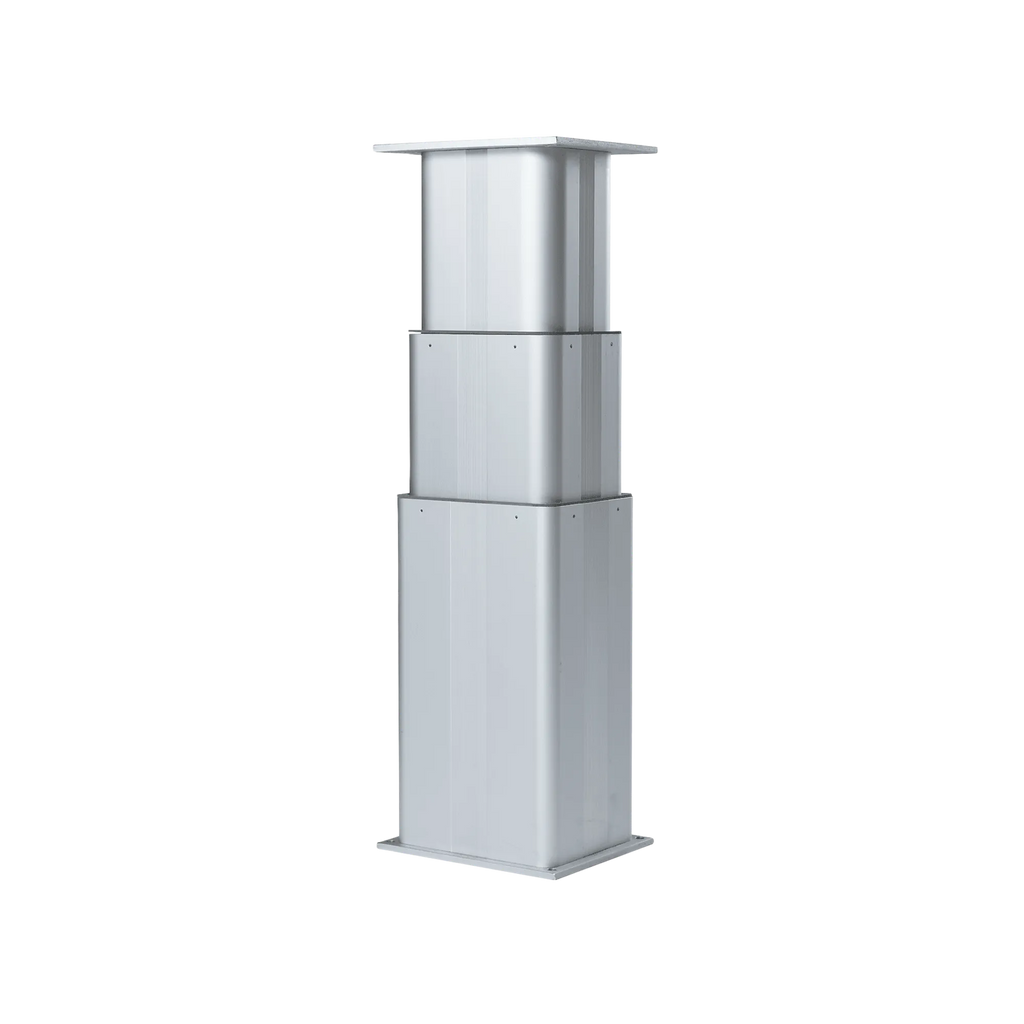

Lifting column LP 221-3D Electric drive. Stable, silent and maintenance-free lifting column, designed to regulate the working position of table, fixtures, workstations etc. The telescope is made of natural anodized aluminum and thus fully recyclable. LP22-3D has good lifting power, is torsionally stiff and is torque resistant. The large sliding bearings of the lifting column provide maximum stability. The telescope is 3-piece and provides a longer stroke with the help of a patented chain transmission, driven by a single motor. The columns must be supplemented with actuators, see Accessories for electric lift column. A wide range of standard models is available, and can also be customized according to your wishes.
Technical data:
- Supplied with control unit.
- Maximum bending moment: 800 Nm static at full stroke, 600 Nm dynamic.
- Intermittent: 15% but maximum 2 min continuous per 20 min. Minimum load 50 kg per lifting column.
- More than 10,000 operating cycles.
- Tolerance ± 4 mm in height.
- NOTE:! Must be mounted with the inner tube up.
- Cable outlet on inner tube, long side.
- Connection 8-pin MOLEX plug, cable length 1.8 m.
- Drive voltage control unit 230V.
