Gigant drawer cabinet, Anthracite Gray, depth 670mm

drawer cabinet in sheet metal, depth 670mm. For floor and bench mounting. Fits Gigants Stabile table.

100% pull-out drawers fitted with ball bearing expansions
For direct mounting in Table tops 40/50 mm, depth 800 mm
Mounted in the table stand with bracket on Stabile 300, depth 800mm
The drawers have an integrated handle in bent sheet steel. Can be supplemented with drawer locks 79460754
Central locking with key
Max load boxes: 65 kg distributed weight. TIP: Can be increased to 90kg with extra Expansion 89952808 (applies to 100mm high boxes or higher). Art. 89951610 is 200mm high and has two expanders with a max load of 90kg.
Internal drawer dimensions W=450 mm D=600 mm
Gray lacquered frame RAL 7037 and Anthracite gray drawers RAL 7016

NOTE: If the curtain is placed freestanding, it must be supplemented with a top or table top, taking into account the risk of tipping.

Product	Height	Width	Depth	Drawer combination
89951511 TABLE DRAWER GRAY H150XW490XD670MM	150MM	490MM	670MM	1x100 mm at 65kg

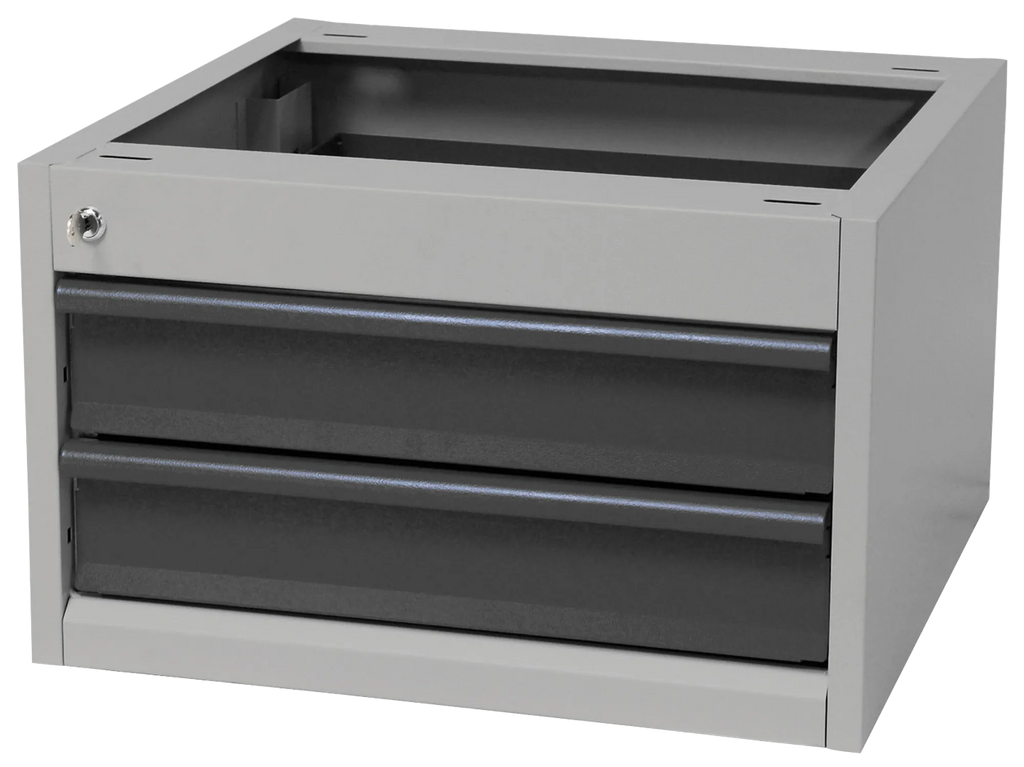

89951529 HURTS 2 L GRAY H330XW535XD670MM	330MM	535MM	670MM	2x100 mm at 65 kg
89951537 HURTS 4L EQUAL DRAWERS H540XW535XD670MM	540MM	535MM	670MM	4x100 mm at 65 kg
89951545 HURTS 3 L GRAY H540XW535XD670MM	540MM	535MM	670MM	1x50, 1x150 mm at 65kg / 1x200 mm at 90 kg
89951552 HURTS 4L VARIOUS DRAWERS H540XW535XD670MM	540MM	535MM	670MM	1x50, 2x100, 150 mm at 65 kg

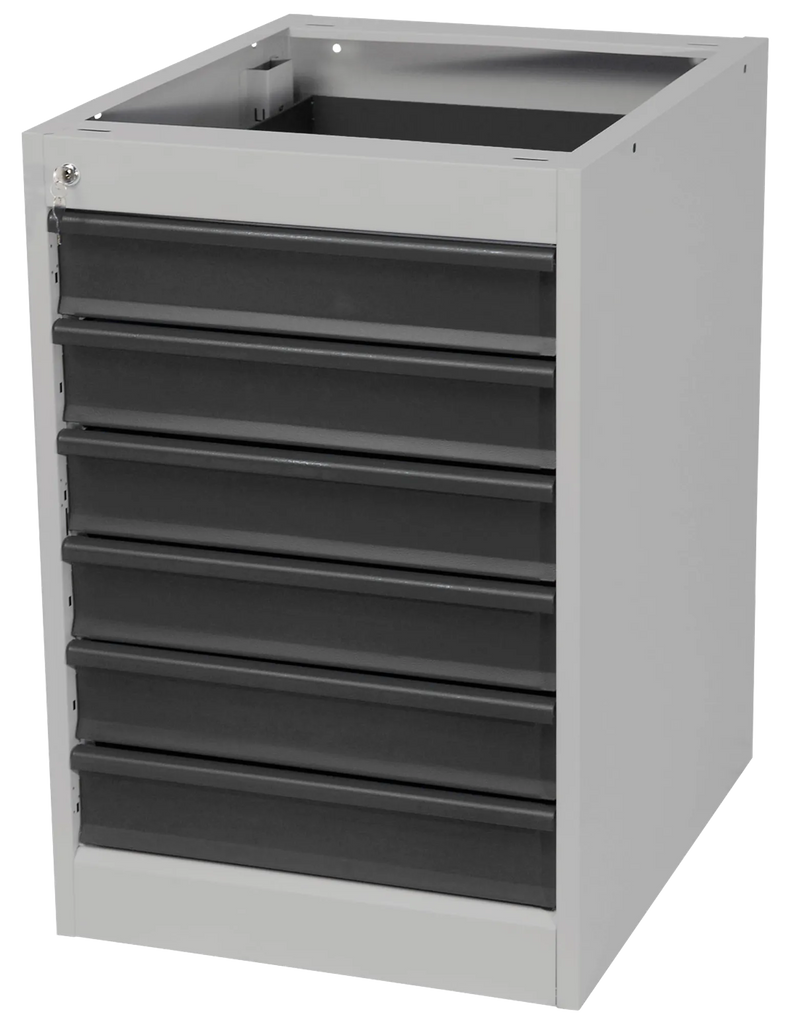

89951560 HURTS 6 L GRAY H800XW535XD670MM	800MM	535MM	670MM	6x100 mm at 65 kg
89951578 HURTS 4 L GRAY H800XW535XD670MM	800MM	535MM	670MM	1x50, 1x100, 1x150 mm at 65 kg / 1x300 mm at 90 kg
89951586 HURTS 5 L GRAY H800XW535XD670MM	800MM	535MM	670MM	1x50, 2x100, 1x150 mm at 65 kg / 1x200 mm at 90 kg
89951594 HURTS 2L 1D GRAY H800XB535XD670	800MM	535MM	670MM	1x50, 1x150 mm each 65 kg + Dryer
89951602 HURTS 1 D GRAY H800XW535XD670MM	800MM	535MM	670MM	Dryer + 1 shelf of 45 kg
89951610 HURTS 1 L GRAY H330XW535XD670MM	330MM	535MM	670MM	1x200 mm at 90kg
184452407 FOAM INTERIOR 600X450X27MM S/B	27MM	450MM	600MM
