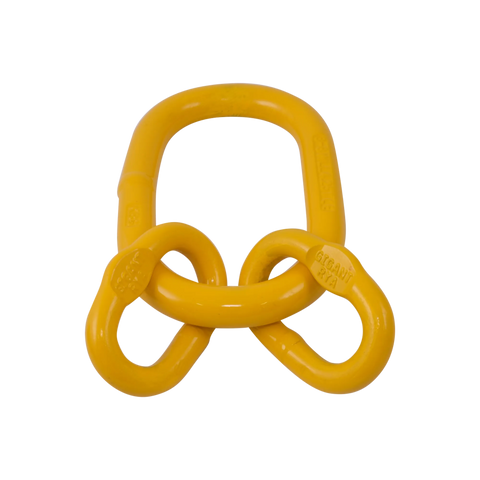

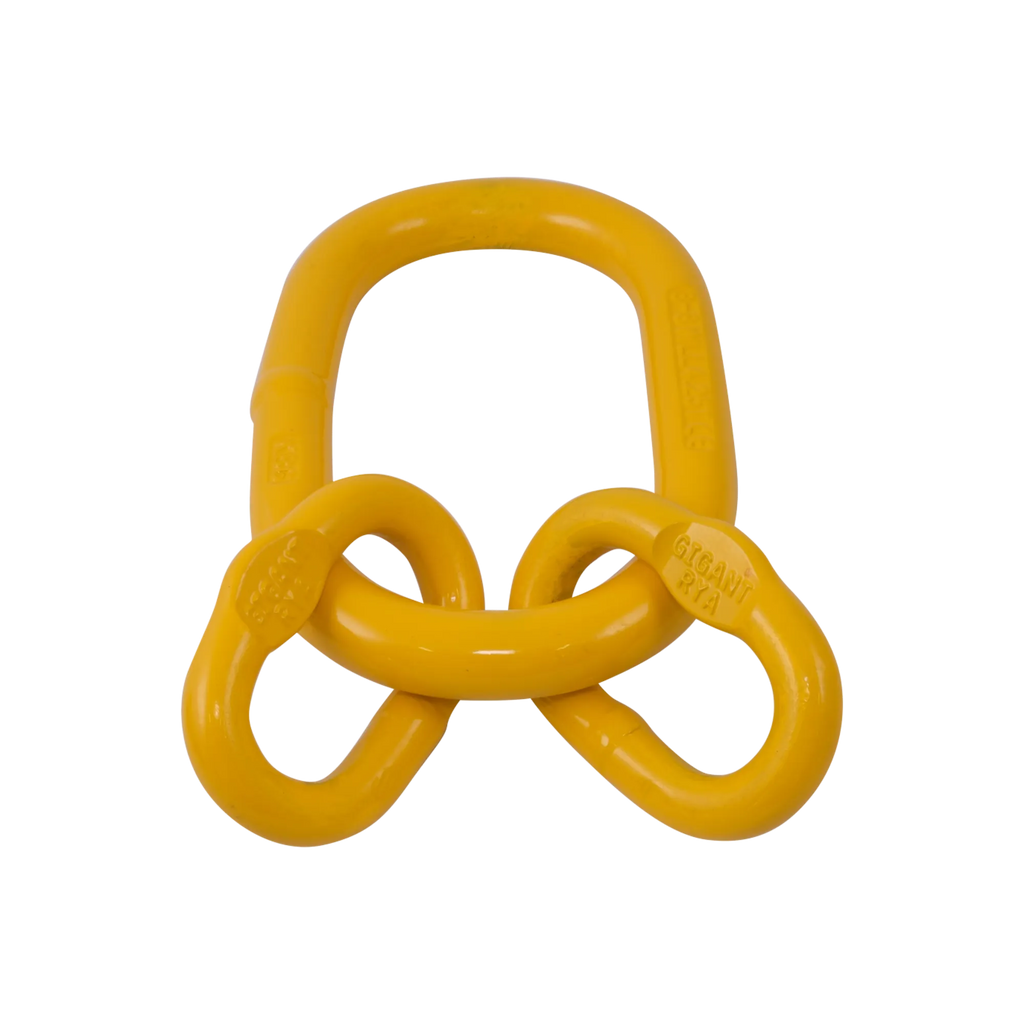

master link for 3-4 party Gigant
master link for 3-4 party Gigant
master link for 3-4 party Gigant
master link for 3-4 parts of case hardening steel. Must not be heat treated. Marked with the appropriate chain dimension. Test load: Min. 2.5 x max load and safety factor: 4:1. Surface treated with protective lacquer, yellow. Class 8.
ProductMaximum loadChain dimensionMachine thread dimensionDimension ADimension BDimension CDimension DDimension EDimensions FDimensions GDimensions HDimensions LDimensions MDimension T
243876406
master link 3-4P KL8 6MM 2,36T		2,36TON6MM135MM75MM18MM
243876505
master link 3-4P KL8 7/8MM 4,25T		4,25TON7.8MM160MM90MM22MM
243876604
master link 3-4P KL8 10MM 6,7T		6,7TON10MM180MM100MM25MM
243876703
master link 3-4P KL8 13MM 11,2T		11,2TON13MM200MM110MM32MM
243876802
master link 3-4P KL8 16MM 17T		17TON16MM260MM140MM36MM
