component connector Gigant
component connector Gigant
component connector Gigant

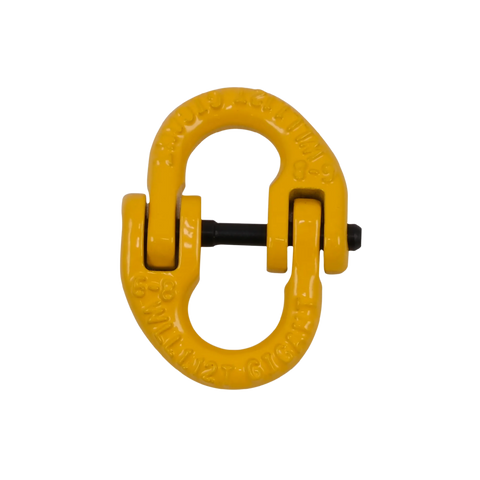

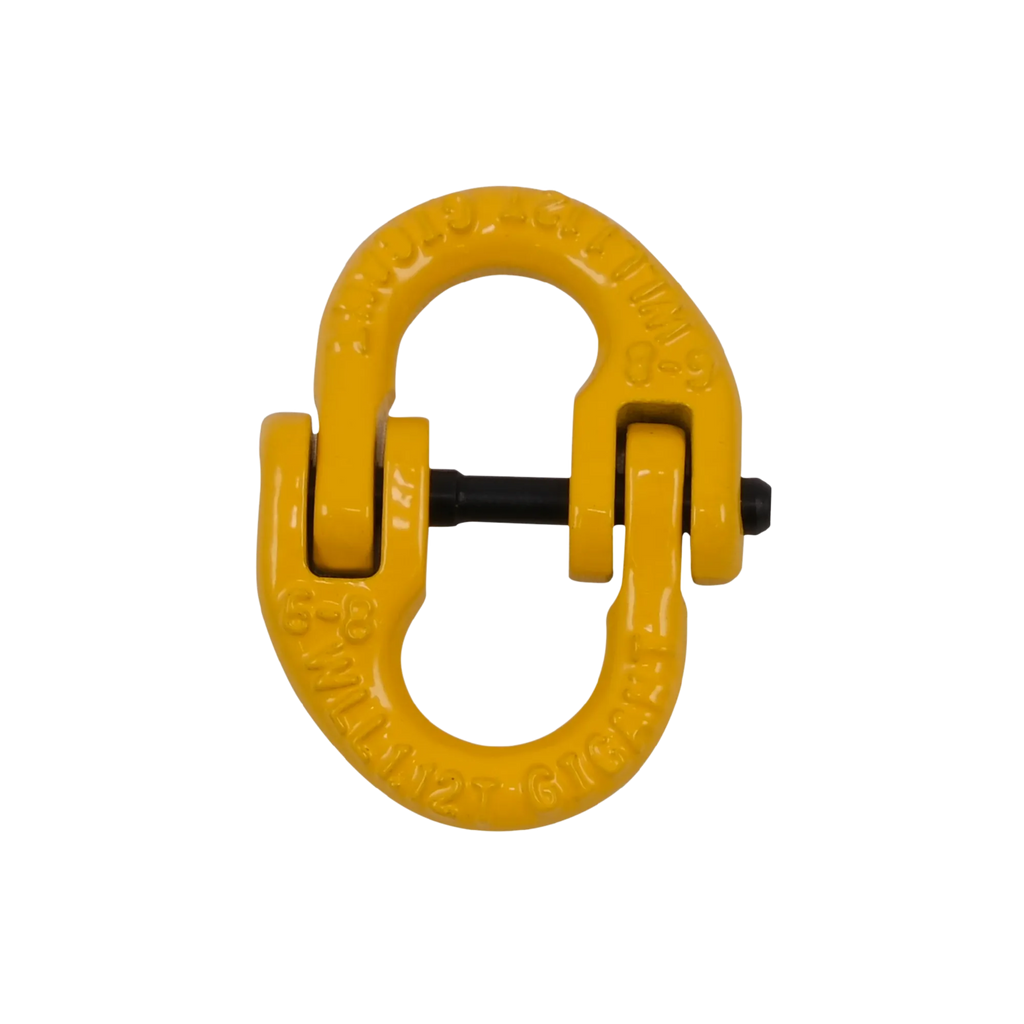

component connector of quenched and tempered steel. Must not be heat treated. Marked with the appropriate chain dimension. Test load: Min. 2.5 x max load and safety factor: 4:1. Surface treated with protective lacquer, yellow. Class 8.
ProductMaximum loadChain dimensionMachine thread dimensionDimension ADimension BDimension CDimension DDimension EDimensions FDimensions GDimensions HDimensions IDimension JDimensions KDimensions LDimensions MDimension TDimension PDimensions QDimension ØDimensions Ø1Dimensions Ø`Dimensions Ø2
243872504
component connector KL8 6MM 1,12T		1,12TON6MM15.5MM7.5MM17.4MM7MM39MM54MM42MM11.4MM11.4 million
243872603
component connector KL8 7/8MM 2,0T		2TON7.8MM20.5MM9MM24MM8.5MM58MM77MM55MM13.6MM13.6 mm
243872702
component connector KL8 10MM 3,15T		3,15TON10MM26MM12MM28.5MM11.5MM73MM97MM69MM18.5MM18.5 mm
243872801
component connector KL8 13MM 5,3T		5,3TON13MM30MM15MM35MM15MM85MM115MM86.6MM24.5MM24.5MM
243872900
component connector KL8 16MM 8,0T		8TON16MM35MM19.6MM39MM19.8MM104MM142MM103MM28MM28MM
