choke hook GIGANT
choke hook GIGANT
choke hook GIGANT

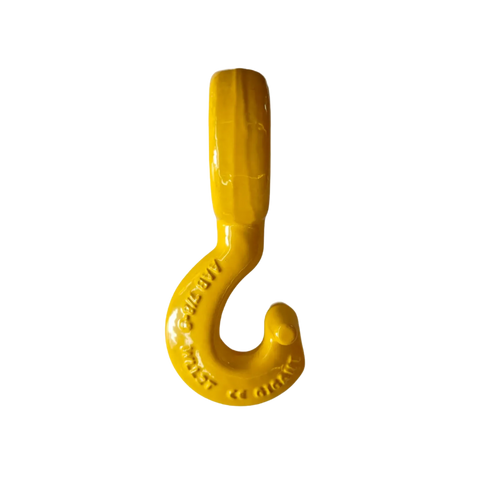

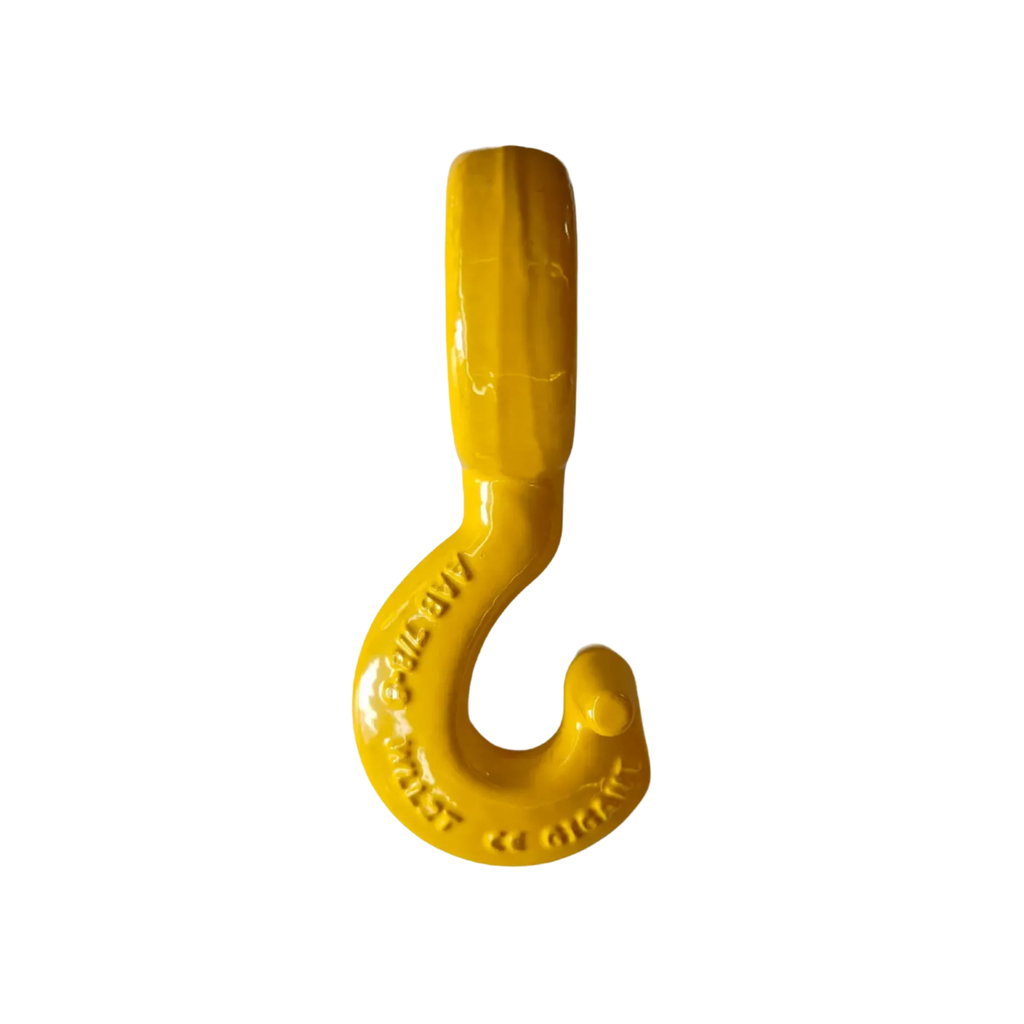

choke hook hardened steel. Must not be heat treated. Marked with appropriate chain dimension. Test load: Min. 2.5 x max. load and safety factor: 4:1. Surface treated with protective lacquer, yellow. Class 8.
ProductMaximum loadChain dimensionMachine thread dimensionDimension ADimension BDimension CDimension DDimension EDimensions FDimensions GDimensions HDimensions IDimension JDimensions KDimensions LDimensions MDimension TDimension PDimensions QDimension ØDimensions Ø1Dimensions Ø`Dimensions Ø2
243880119
choke hook . 8 2T 7/8MM		2TON7/8MM19MM29.5MM16.5MM16MM122MM53.5MM31.5MM
243880127
choke hook . 8 3.15T 10MM		3.15TON10MM26MM40MM17.5MM20MM156.5MM69.5MM40MM
243880135
choke hook . 8 5.3T 13MM		5.3TON13MM34MM43MM21MM27MM196MM87MM53MM
243880143
choke hook . 8 8T 16MM		8TON16MM51MM45.5MM31MM30MM245MM108.5MM64.5MM
