Omegalink Gigant
Omegalink Gigant
Omegalink Gigant
Omegalink Gigant

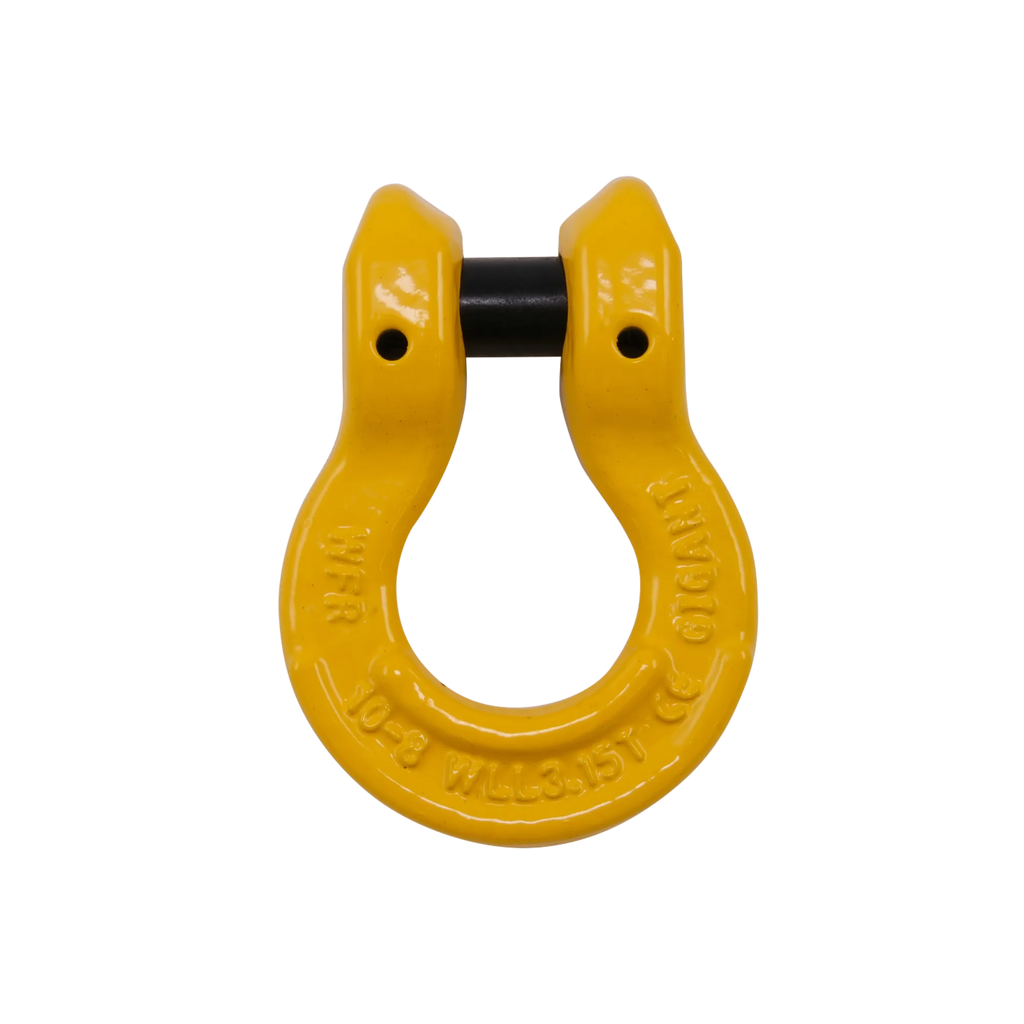

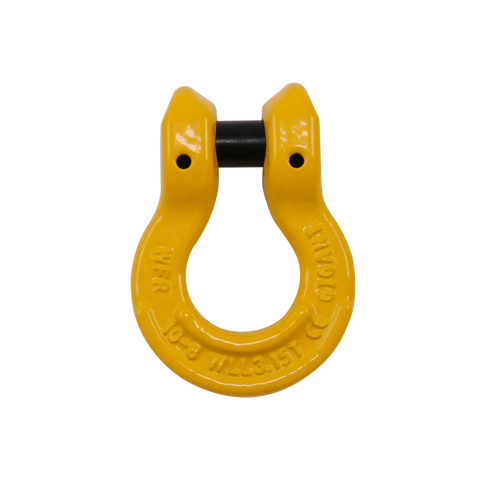

Strain hardening steel omega link. Must not be heat treated. Marked with the appropriate chain dimension. Test load: Min. 2.5 x max load and safety factor: 4:1. Surface treated with protective lacquer, yellow. Class 8.
ProductMaximum loadChain dimensionMachine thread dimensionDimension ADimension BDimension CDimension DDimension EDimensions FDimensions GDimensions HDimensions IDimension JDimensions KDimensions LDimensions MDimension TDimension PDimensions QDimension ØDimensions Ø1Dimensions Ø`Dimensions Ø2
243873007
OMEGA LINK KL8 6MM 1,12T		1,12TON6MM8MM41MM9MM25MM17MM52MM19MM19MM7.6MM
243873106
OMEGA LINK KL8 7/8MM 2,0T		2TON7.8MM10MM52MM14MM35MM22MM68.5MM23MM23MM9MM
243873205
OMEGA LINK KL8 10MM 3,15T		3,15TON10MM12,5MM62MM16MM46MM26MM87MM30MM30MM13MM
243873304
OMEGA LINK KL8 13MM 5,3T		5,3TON13MM15MM80MM20MM54MM33MM108MM38MM38MM16MM
243873403
OMEGA LINK KL8 16MM 8,0T		8TON16MM19MM99MM25MM64MM38MM126MM49MM49MM19.7MM
