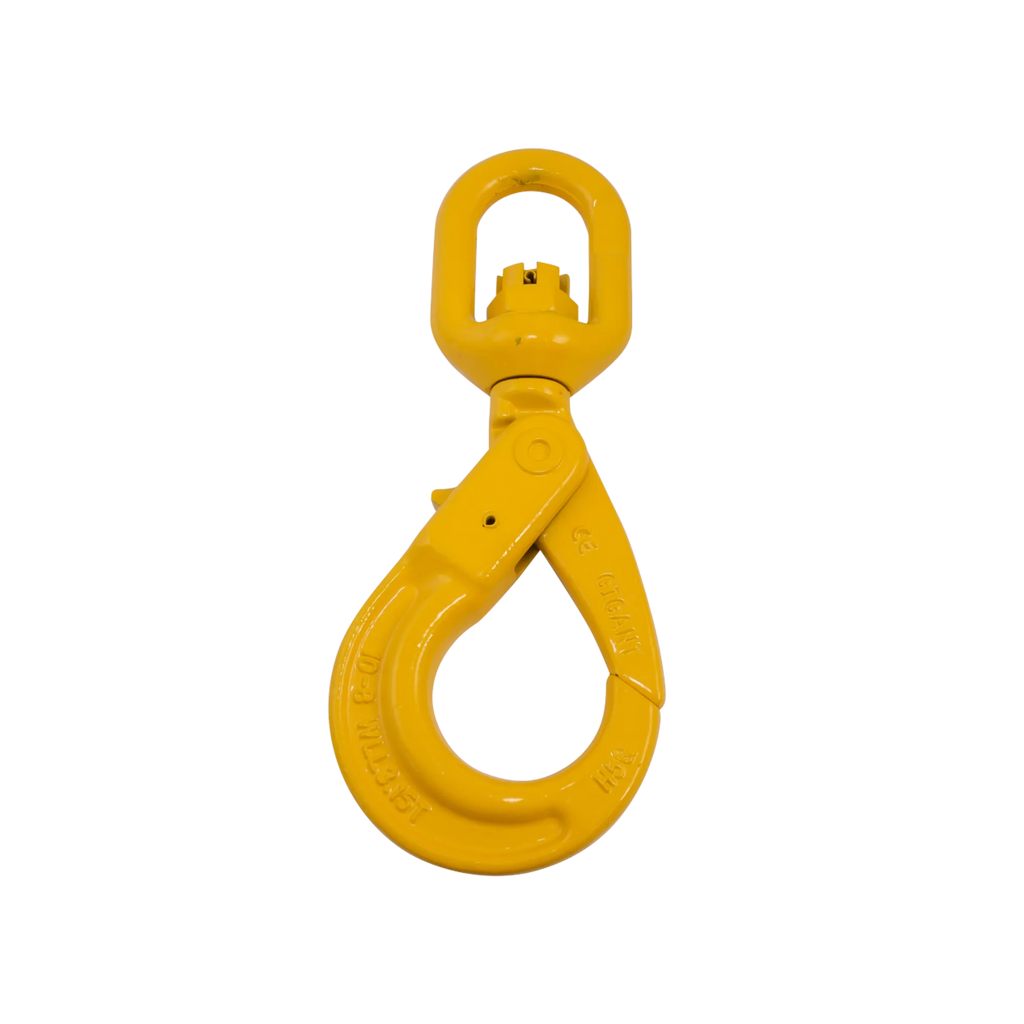

eye self locking hook leaky Gigant

eye self locking hook made of case hardening steel. Must not be heat treated. Marked with the appropriate chain dimension. Test load: Min. 2.5 x max load and safety factor: 4:1. Surface treated with protective lacquer, yellow. Class 8.

Product	Maximum load	Chain dimension	Dimension A	Dimension B	Dimension E	Dimensions H	Dimensions L	Dimensions M
243875507 eye self locking hook LEK KL8 6 MM	1,12TON	6MM	32.5MM	25,5MM	32MM	20MM	152MM	73
243875606 eye self locking hook LEK KL8 7/8MM	2TON	7.8MM	36MM	29.5MM	40MM	26MM	189MM	91
243875705 eye self locking hook LEK KL8 10 MM	3,15TON	10MM	42MM	39MM	48MM	30MM	223MM	108
243875804 eye self locking hook LEK KL8 13 MM	5,3TON	13MM	50MM	41MM	57MM	40MM	267MM	142
243875903 eye self locking hook LEK KL8 16 MM	8TON	16MM	70MM	58MM	65MM	50.5MM	339MM	68,6

eye self locking hook leaky Gigant
